Cold Runner Two-Shot Injection Mold 3D Design Case

3D Mold Design 2026-06-10 | By ZZT Injection Mold Design Studio (China) | 0 views

This project showcases a complete cold runner two-shot injection mold 3D design solution. Utilizing MISUMI (Japan) standard components and FUTABA (Japan) mold bases, we ensure high precision, structural stability, and extended service life for export-oriented manufacturing.

Key Design Advantages

Optimized cold runner system reduces material waste and precisely controls melt temperature.
Integrated two-shot molding structure enables complex multi-color parts in a single cycle.
Precision fit design ensures smooth operation and minimizes maintenance downtime.
Full compliance with international standards for global compatibility.

Technical Specifications

Item	Specification
Mold Type	Cold Runner Two-Shot Injection Mold
Mold Base	FUTABA (Japan) Standard
Components	MISUMI (Japan) Standard (DME/HASCO compatible)
Software	NX UG (Full 3D Parametric Design)

Design Deliverables

3D model of two-shot injection molded product

Fig 1: 3D Structure of Two-Shot Product

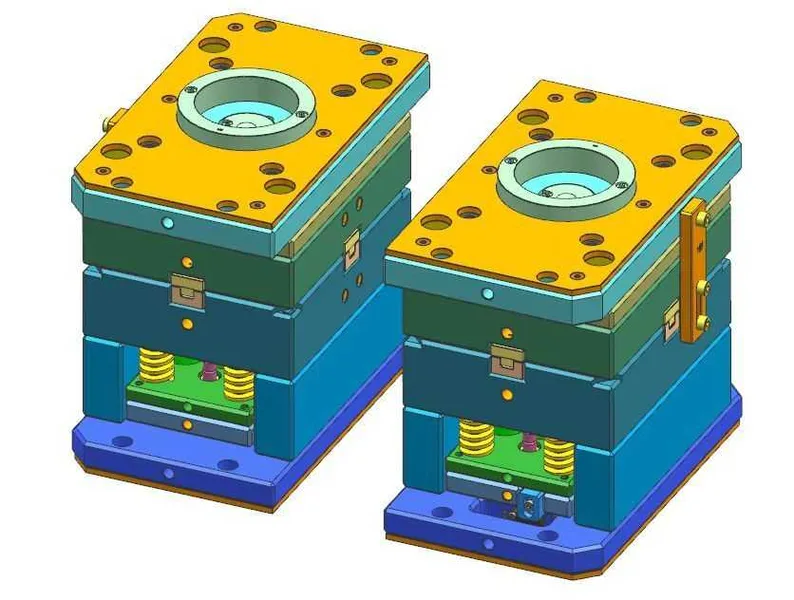

3D assembly drawing of two-shot injection mold

Fig 2: Complete Mold Assembly 3D Layout

Fixed side 3D structure of two-shot injection mold

Fig 3: Fixed Mold (Cavity) 3D Design

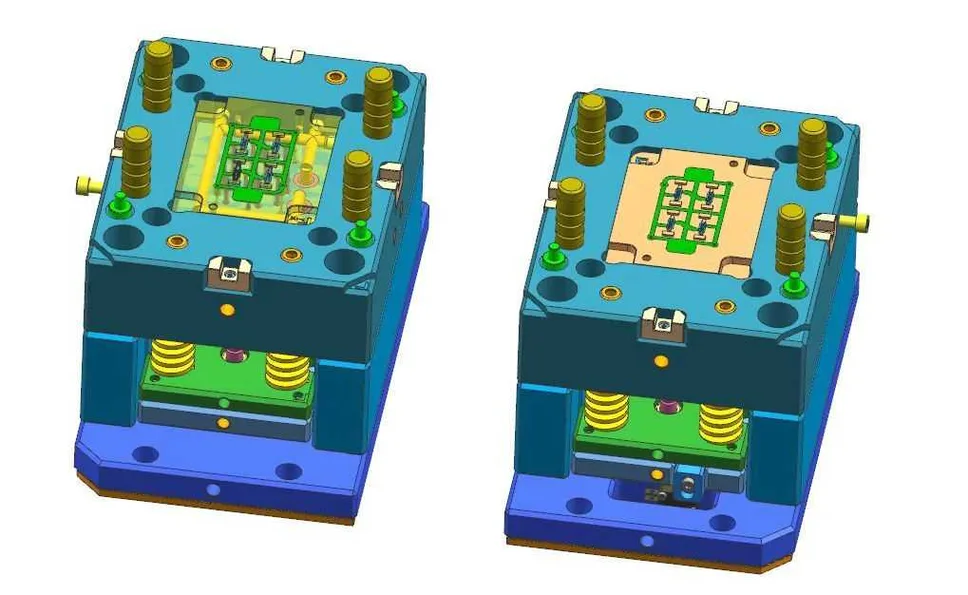

Moving side 3D structure of two-shot injection mold

Fig 4: Moving Mold (Core) 3D Design
