Two-Plate Cold Runner Injection Mold Design
This case study showcases a typical two-plate cold runner injection mold design featuring a sub-gate (submarine gate) system. Developed through a full 3D parametric workflow, the project demonstrates the engineering logic behind the gating system, ejection mechanism, and cooling circuits, serving as a technical reference for general-purpose plastic injection mold design.
Key Design Parameters & Technical Highlights
- • Mold Architecture: Two-plate injection mold design
- • Gating System: Sub-gate mold design with automatic degating
- • Design Platform: Siemens NX full 3D injection mold design
- • Standards Compliance: Compatible with HASCO, DME, and other international mold base standards
Two-Plate Mold: Design Perspective Analysis
Design Advantages
In this two-plate mold design, the simplified structure minimizes moving components and interference risks. Combined with a sub-gate system, the design eliminates the need for secondary gate trimming, facilitating downstream automation layouts.
Design Considerations
Unlike sub-gates or banana gates, conventional gating methods often require reserved space for post-processing. During the injection mold design phase, engineers must evaluate cosmetic requirements and compatibility with automated part handling systems.

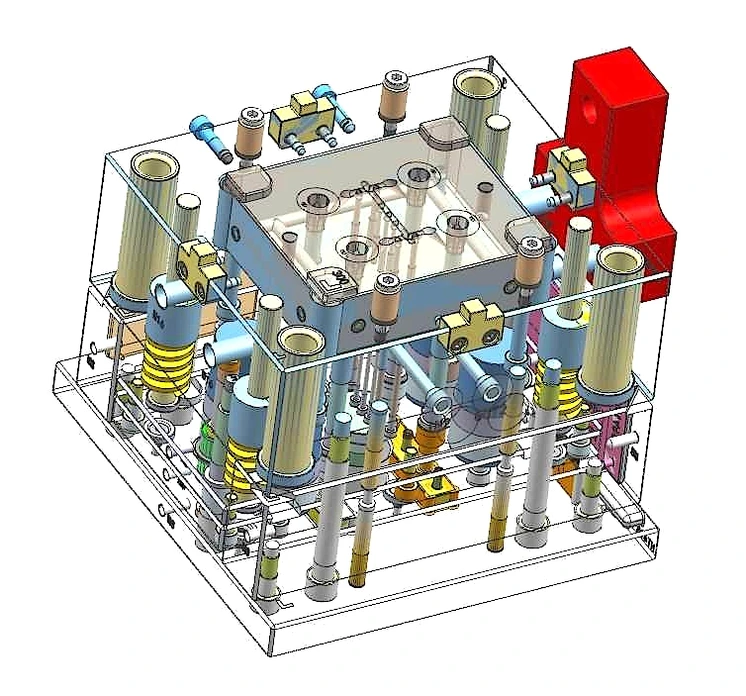

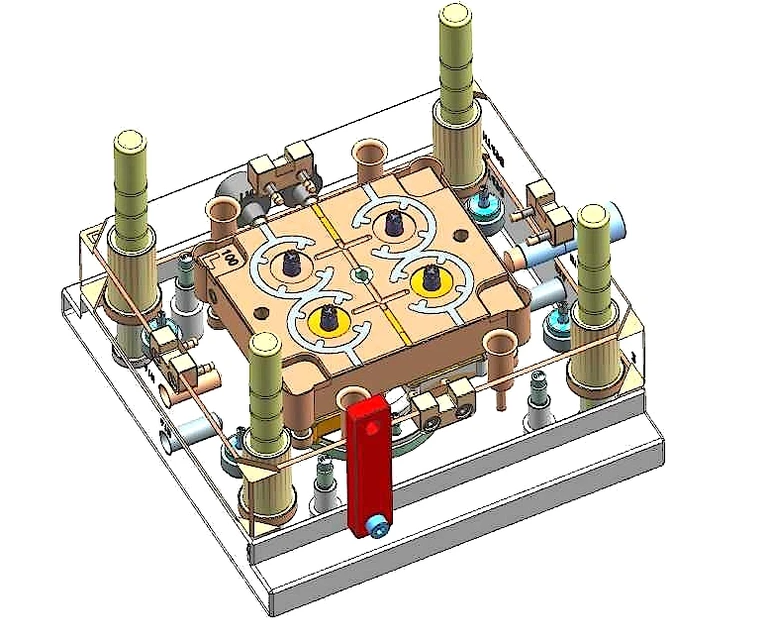

3D Mold Design Visualization
Design Highlights
Optimized Gating Design
Focusing on injection mold design details, the sub-gate optimization enables automatic degating upon opening, enhancing production efficiency.
Standardized Mold Base Design
Adhering to HASCO / DME standards in this two-plate mold design ensures high compatibility with machining processes at qualified mold shops.
Full 3D Parametric Design
Based on a full 3D parametric injection mold design workflow, we conduct interference checks and structural validation in advance to mitigate trial-run risks.
Design Deliverables
As an engineering team specializing in injection mold design, we provide a complete digital design package for this case study. This includes 3D mold assembly models (NX/STP/IGS), 2D detailed part drawings, BOM, DFM analysis reports, and assembly specifications—ready for our partners to utilize in mold manufacturing and engineering reviews.
With extensive experience in plastic injection mold design, we prioritize manufacturability and assembly efficiency during the design phase to ensure seamless technical integration between stakeholders.
